Product Description

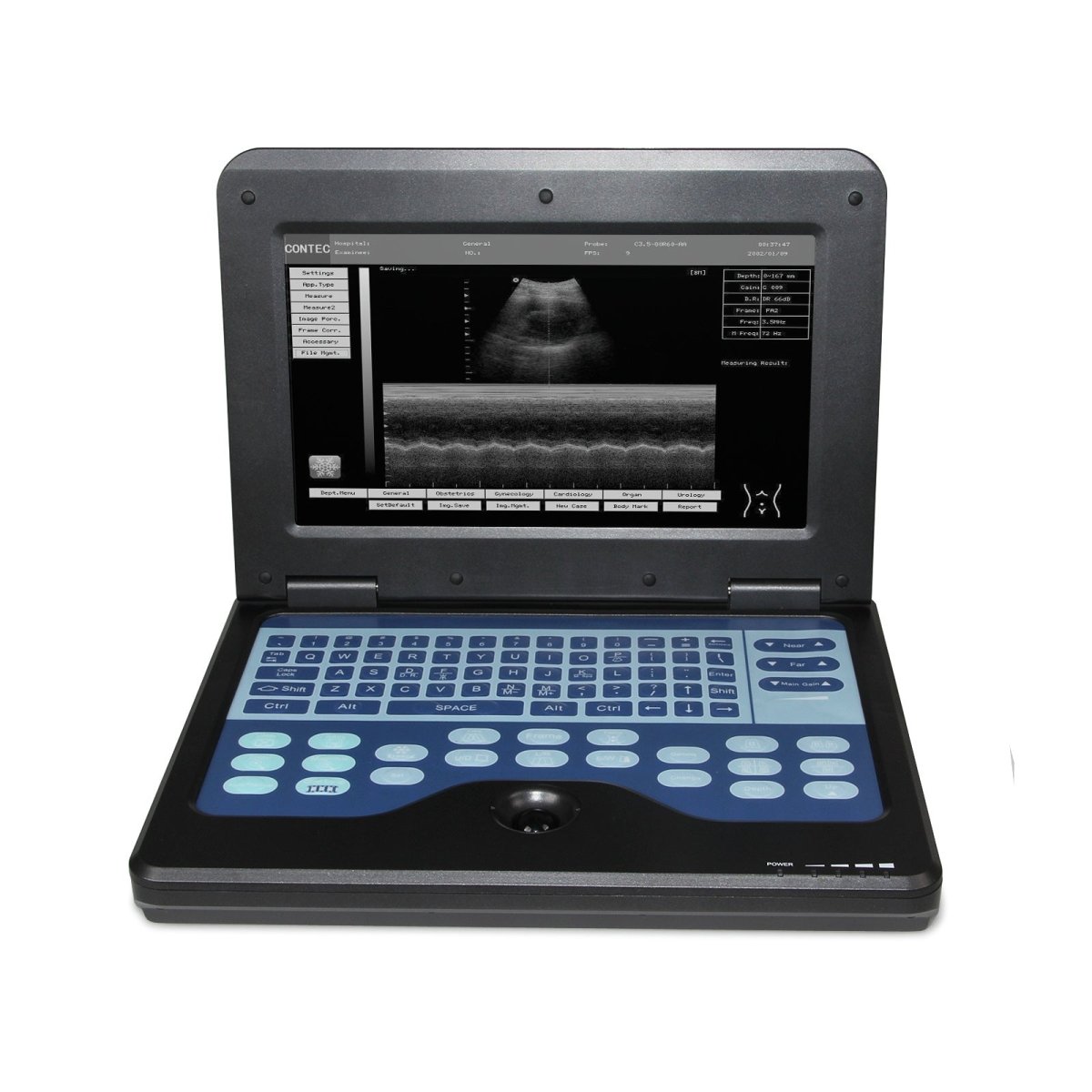

The CMS600P2 is a lightweight, high-performance ultrasound scanner designed for clinics, mobile care, and diagnostic imaging on the go. With advanced digital imaging, built-in battery, and support for multiple probe types, this notebook-style ultrasound machine delivers precision, portability, and performance in one compact unit.
✅ Key Features & Benefits
-
💻 Notebook-Style Design – Lightweight (2.3kg), compact, and travel-friendly
-
⚙️ Linux Embedded OS – Stable, compatible, and highly expandable
-
🧠 Advanced Imaging Tech – Real-time dynamic focusing, harmonic imaging, 256 gray scale
-
🖥️ 10.1” TFT LCD Display – Crisp resolution: 1024×600
-
⚡ Fast Operation – Touch-type foldable keyboard + trackball for efficient scanning
-
🧪 Auto Report Generation – OB/GYN, cardiology, urology, small parts
-
📸 Image Storage & Export – Save up to 2048 frames, export via USB
-
🖨️ Print Ready – Compatible with video, inkjet, and laser printers
-
📍 Adjustable Gain – Control near, far, and total gain independently
-
🔌 Interfaces – USB, VGA, Video output
🧬 What's Included
-
3.5 MHz Convex Probe (2.0–5.0 MHz)
-
Power Adapter
-
User Manual
-
Built-in Battery
🔄 Optional Probes
-
6.5 MHz Endo-Vaginal Probe (5.0–8.5 MHz)
-
7.5 MHz Linear Probe (5.0–10.0 MHz)
📏 Specifications at a Glance
-
Display Modes: B, 2B, 4B, B/M, M
-
Zoom: 0.9x to 2.0x
-
Cine Loop: 600 frames
-
Body Marks: 43 presets
-
Image Resolution: Axial 2mm, Lateral 2–4mm
-
Dimensions: 292×232×45 mm
-
Weight: 2.3 kg (with probe)
-
Languages: English, Chinese
-
Image Orientation: Flip & invert supported
